EZVIZ 24W Battery Solar Panel
EZVIZ 24W Battery Solar Panel
Regular price
RM0.00 MYR
Regular price
Sale price
RM0.00 MYR
Unit price
/
per
Couldn't load pickup availability
Specifications
| Specifications | |
|---|---|
| Model | CS-PBC24-R100-20AH |
| Performance Parameter | |
| Open Circuit Voltage | 18.4V (-5%, +10%) |
| Short Circuit Current | 1.65A (-5%, +10%) |
| Power Voltage | 15.3V (-5%, +10%) |
| Max Power Current | 1.57A (-5%, +10%) |
| Max. Power | 24W |
| Battery Capacity | 75Wh (14.6V 5000mAh) rechargeable battery, battery life varies based on settings, usage & temperature |
| Interface | One Type-C input port, two USB-A output ports |
| Transformation Efficiency | 0.23 |
| IP Grade | IP65 |
| General | |
| Operating Conditions |
-20°C to 60°C (-4°F to 140 °F ), Humidity 90% or less (non-condensing) (The working environment temperature range for battery camera charging should be maintained at 0-45°C ) |
| Power Supply | DC 5V/2A |
| Material | High efficiency monocrystalline silicon cell |

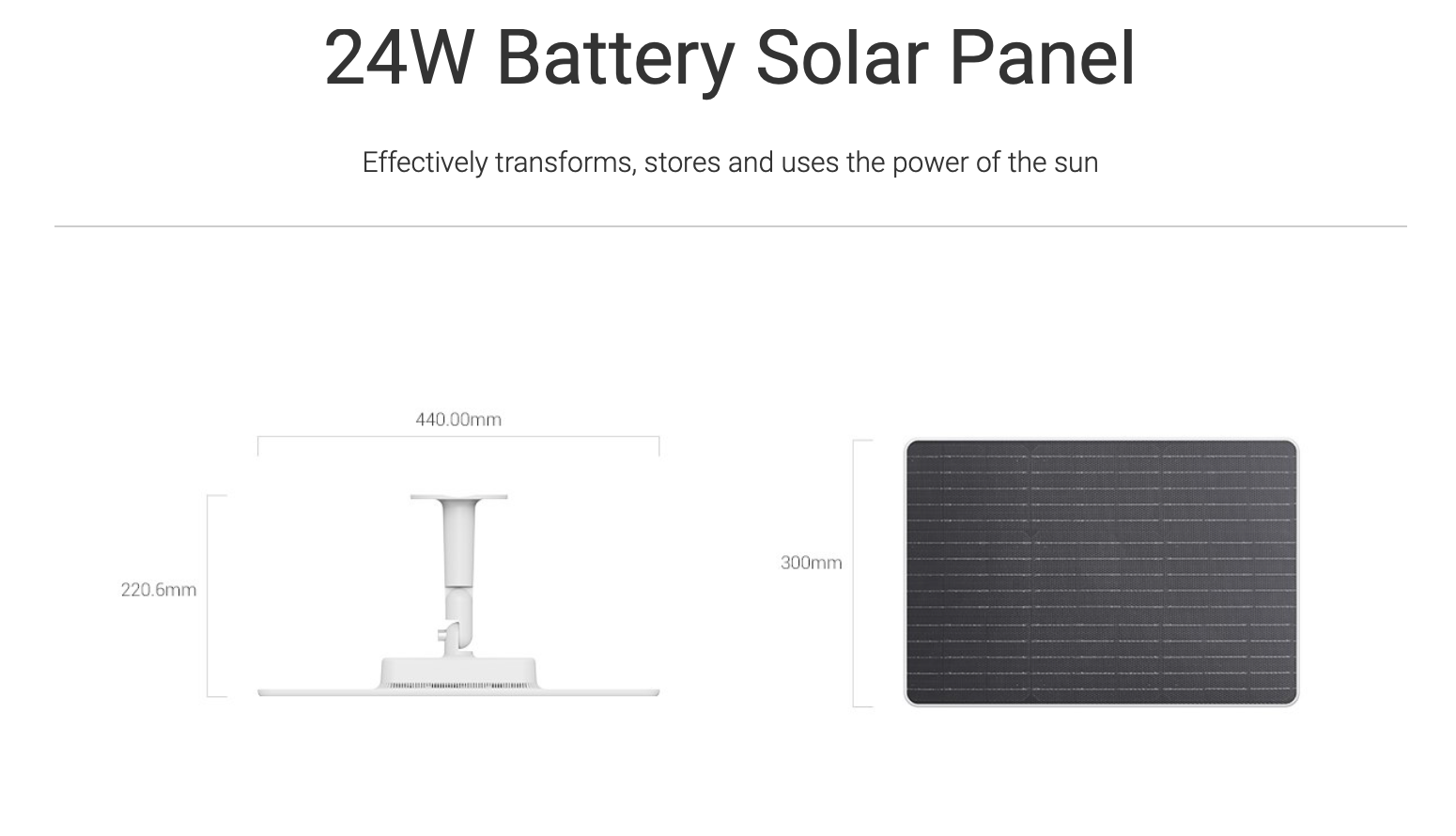

| Product Dimension | 220.6 × 300 × 440 mm (8.69 × 11.81 × 17.32 inch) |
| Packaging Dimensions | 480 x 115 x 340 mm (18.90” x 4.53” x 13.38”) |
| Weight | Net weight: 2.1 kg (74.07 oz) With package: 3.06 kg (107.94 oz) |
| In the box | |
| In the box | - Solar Panel with Battery Storage |
| - Adjustable Mounting Bracket | |
| - Hex Socket Head Cap Screw | |
| - Drill Template | |
| - Type-C to Micro USB Transformer (×2) | |
| - Mount Bracket (×2) | |
| - Power Cable (×2) | |
| - L-Shaped Wrench | |
| - Screw Kit | |
| - Regulatory Information (×2) | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / REACH / WEEE / RoHS |
