Buy EZVIZ Solar Panel Kit 4x100W 400W | ISD Kuching Sarawak Malaysia
Buy EZVIZ Solar Panel Kit 4x100W 400W | ISD Kuching Sarawak Malaysia
Regular price
RM100.00 MYR
Regular price
Sale price
RM100.00 MYR
Unit price
/
per
Couldn't load pickup availability
Specifications
| Specifications | |
|---|---|
| Model | CS-PVS400-R100-G |
| Solar panel | |
| Max power | 100W ± 3% per panel |
| Solar panel type | Rigid solar panel |
| Rated voltage | 17.2 V |
| Rated current | 5.8 A |
| Open-circuit voltage | 20.4 V |
| Short-circuit current | 6.2 A |
| Weather –proof | IP 67 |
| Connector | MC4 |
| Installation | Wall mounting / floor mounting (mounting bracket included) |
| Work condition | -40 ºC ~ 85 ºC ( -40 ºF ~ 185 ºF ) |
| Weight | 6.2kg ± 0.2kg (per panel) |

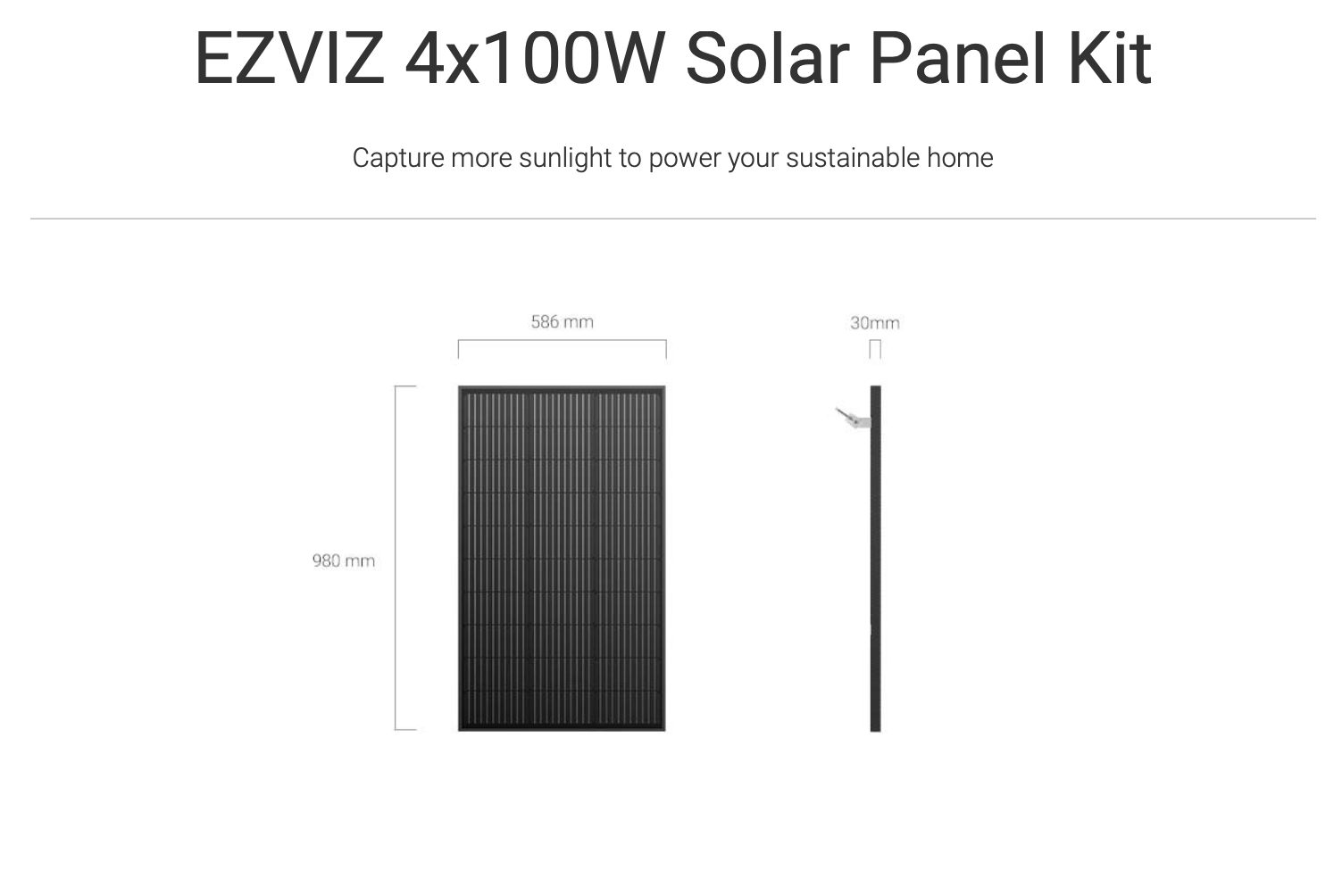

| Dimension | 980 mm × 586 mm × 30 mm (per panel) |
| Warranty | 10 years |
| Accessories - Cables | |
| Cable type |
Y-branch parallel connector × 2 1 positive to 2 negative (M/FF) and 1 negative to 2 positive (F/MM) |
| Length | 30cm length for sub-branch, 30cm length for main-branch |
| Wire standard | 4mm² (12AWG) |
| In the box | |
| In the box | - 100W Solar Panel × 4 |
| - Pole Mounting Brackets × 8 | |
| - Panel Aluminum Angle × 16 | |
| - Wall Aluminum Angle × 16 | |
| - Mounting Screws M6*16 × 42 | |
| - Expansion Screws M6*60 × 17 | |
| - Y-Shaped Cable × 2 | |
| - Spanner | |
| - Tent Stakes × 16 | |
| Certifications | |
| Certifications | CE, RoHS, REACH, WEEE |
